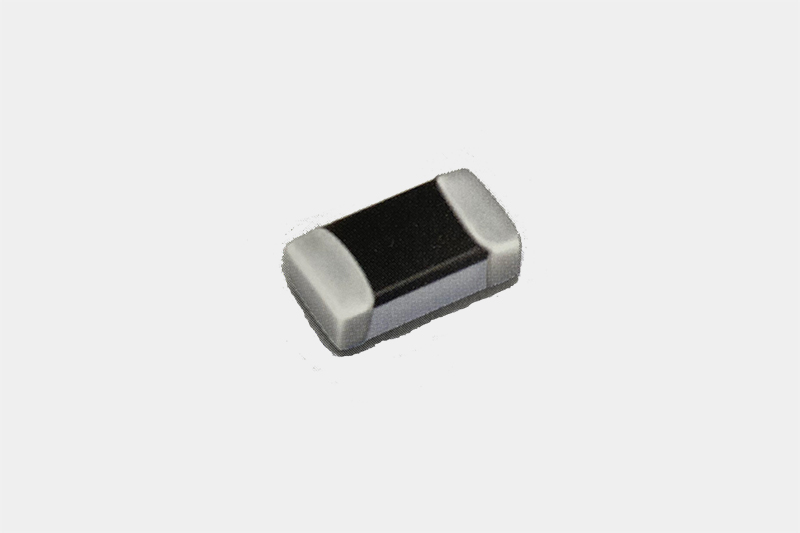

JES series
Features
- Protection against ESD voltages and currents
- Extremely quick response time(<1ns)
- Extremely low capacitance (0.2pF typical)
- Extremely low leakage current
- Bi-directional device
- Zero signal distortion
- Compact size for EIA 0201/0402/0603
Applications
Antenna circuit, USB2.0/3.0, IEEE-1394, DVI, HDMI
| EIA | Part Number | Rated voltage | Leakage current | Trigger voltage | Clamping voltage | Capacitance | ESD Contact discharge | ESD Air discharge | ESD pulse withstand | ||
| VDC | IL | Vt | Vc | Cp | KV | KV | |||||
| max | Typ | Type | Type | Condition | Type | Max | Type | Type | times | ||
| 0201 | JES0201C050T0R2XXG | 5 | 0.01 | 250 | 30 | 1MHz | 0.25 | - | 8 | 15 | 1000 |
| 0201 | JES0201C070T0R2XXG | 7 | 0.01 | 400 | 30 | 1MHz | 0.25 | - | 8 | 15 | 1000 |
| 0201 | JES0201C120T0R2XXG | 12 | 0.01 | 400 | 30 | 1MHz | 0.25 | - | 8 | 15 | 1000 |
| 0402 | JES0402C050T0R2XXG | 5 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0402 | JES0402C120T0R2XXG | 12 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0402 | JES0402C240T0R2XXG | 24 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0402 | JES0402C300T0R2XXG | 30 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0603 | JES0603C050T0R2XXG | 5 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0603 | JES0603C120T0R2XXG | 12 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0603 | JES0603C240T0R2XXG | 24 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
| 0603 | JES0603C300T0R2XXG | 30 | 0.01 | 300 | 30 | 1MHz | 0.2 | 0.5 | 8 | 15 | 1000 |
