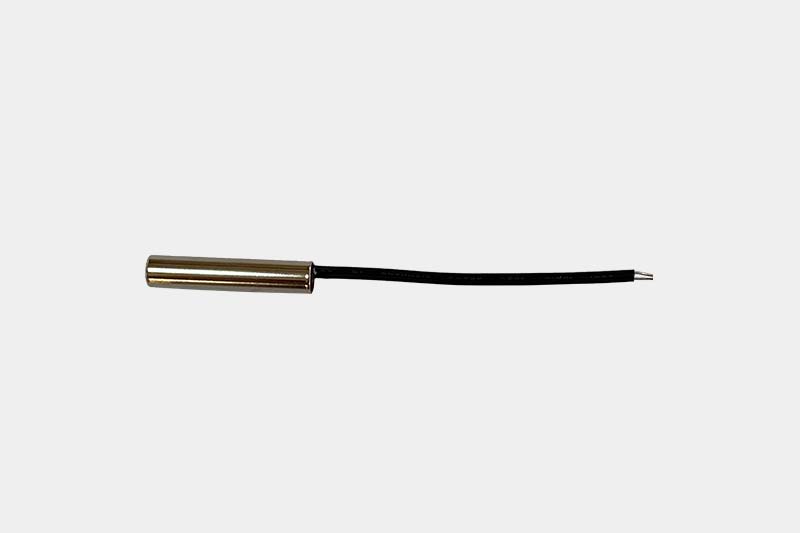

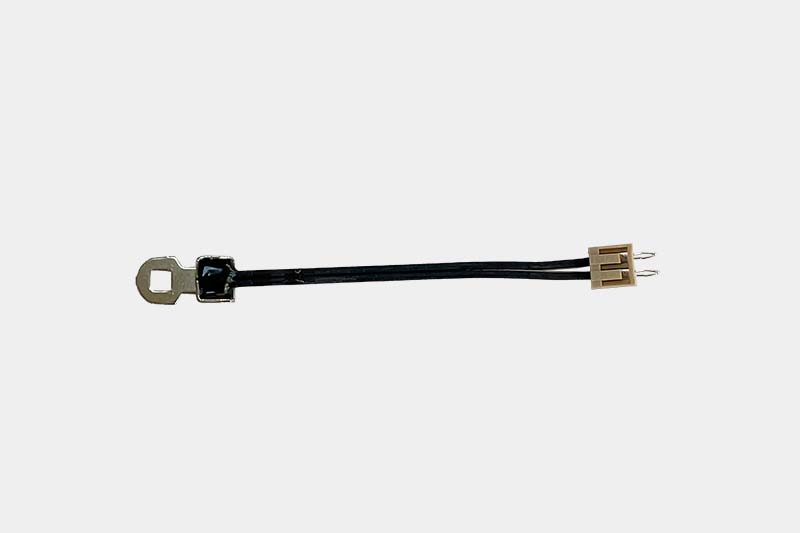

JAS series
Features
- RoHS/Halogen-Free (HF) compliant
- Operating temperature range：-40℃~+125℃
- Wide resistance range
- Agency recognition：UL/TUV
Applications
- Home appliances
- Office automation
- Automotive
- Switch mode power supplies
- Adapters
- Security
| Part No | Zero Power Resistance at 25℃ | Tolerance of R25 | B25/50 Value | Tolerance of B Value | Dissipation Factor | Thermal Time Constant | Max. Power Rating at 25℃ | Safety Approvals | |
| R25 (Ω) | (± %) | (K) | (± %) | δ(mW/℃) | τ(sec.) | (mW) | UL | TÜV | |
| JAS103X395YA | 10,000 | 10,5,3,1 | 3950 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS103X405YA | 10,000 | 10,5,3,1 | 4050 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS103X410YA | 10,000 | 10,5,3,1 | 4100 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS473X395YA | 47,000 | 10,5,3,1 | 3950 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS473X405YA | 47,000 | 10,5,3,1 | 4050 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS503X395YA | 50,000 | 10,5,3,1 | 3950 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS104X395YA | 100,000 | 10,5,3,1 | 3950 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS104X425YA | 100,000 | 10,5,3,1 | 4250 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| Part No | Zero Power Resistance at 25℃ | Tolerance of R25 | B25/85 Value | Tolerance of B Value | Dissipation Factor | Thermal Time Constant | Max. Power Rating at 25℃ | Safety Approvals | |
| R25 (Ω) | (± %) | (K) | (± %) | δ(mW/℃) | τ(sec.) | (mW) | UL | TÜV | |
| JAS103X344YB | 10,000 | 10,5,3,1 | 3435 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | ■ |
| JAS103X398YB | 10,000 | 10,5,3,1 | 3977 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS333X398YB | 33,000 | 10,5,3,1 | 3980 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS473X397YB | 47,000 | 10,5,3,1 | 3970 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS473X408YB | 47,000 | 10,5,3,1 | 4080 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS503X397YB | 50,000 | 10,5,3,1 | 3970 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS683X404YB | 68,000 | 10,5,3,1 | 4040 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS104X408YB | 100,000 | 10,5,3,1 | 4080 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS104X419YB | 100,000 | 10,5,3,1 | 4190 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS104X425YB | 100,000 | 10,5,3,1 | 4250 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ■ | |
| JAS104X436YB | 100,000 | 10,5,3,1 | 4360 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
| JAS153X420YB | 150,000 | 10,5,3,1 | 4200 | 5,3,2,1 | Approx. 2.0 | Approx. 10 | 45 | ||
